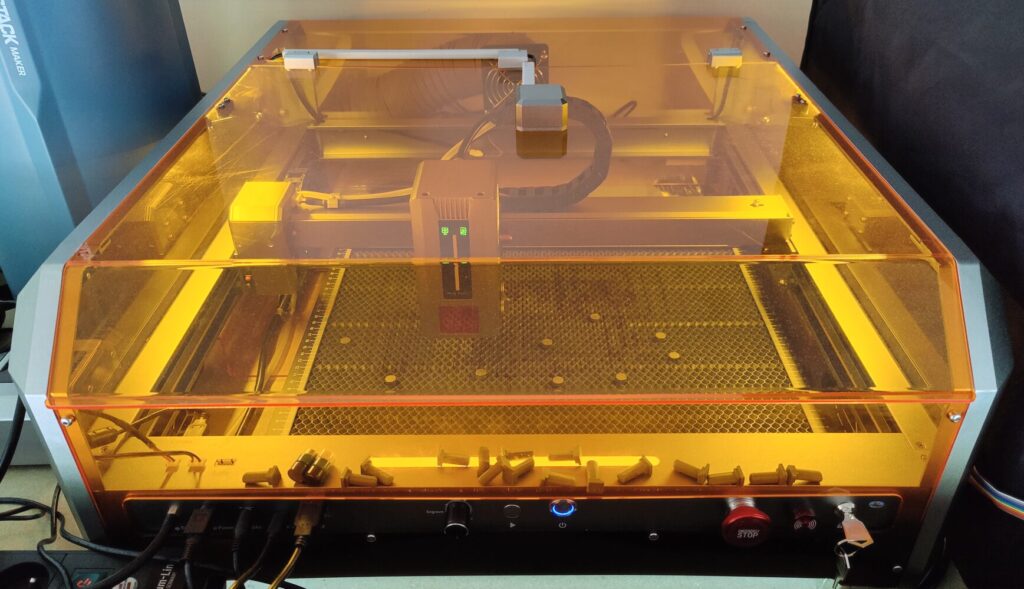

Améliorations fonctionnelles d’un graveur laser GENMITSU L8 40W
- Tighten the key switch
- Fix the position of the laser head (was not perpendicular to the workplace)
- Replace the broken hose connector

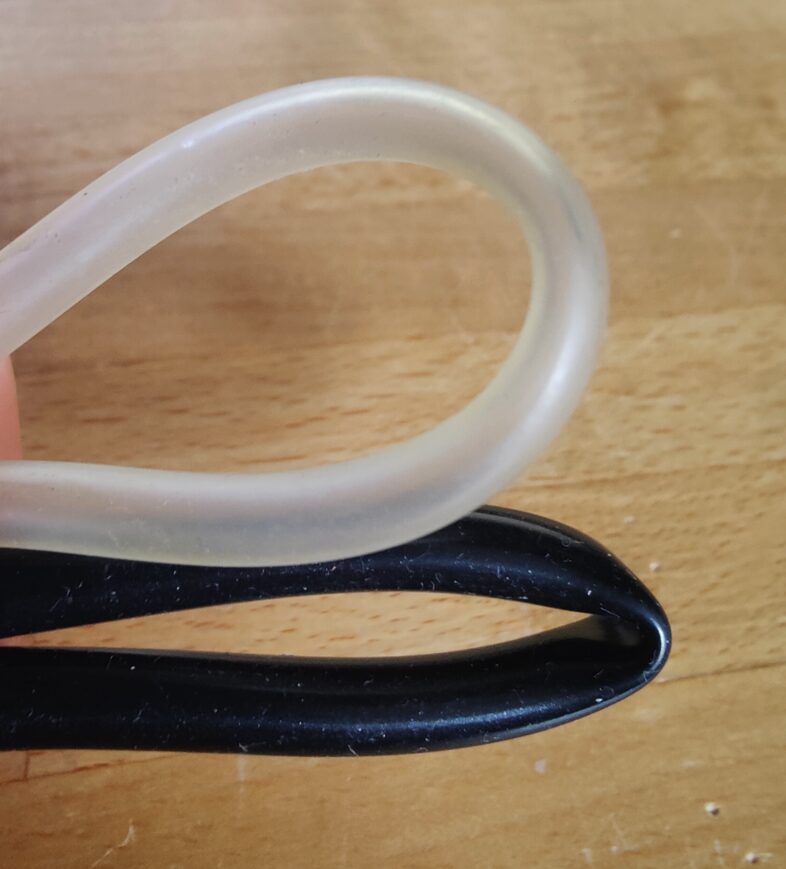

- Replace the air pipe because it folds too much resulting in decreased air flow or a stop of it
- Place a cable guide on Y axis because the cable and air pipe goes into the left belt slot when moving to front and between the laser module and the honeycomb when moving to the back.

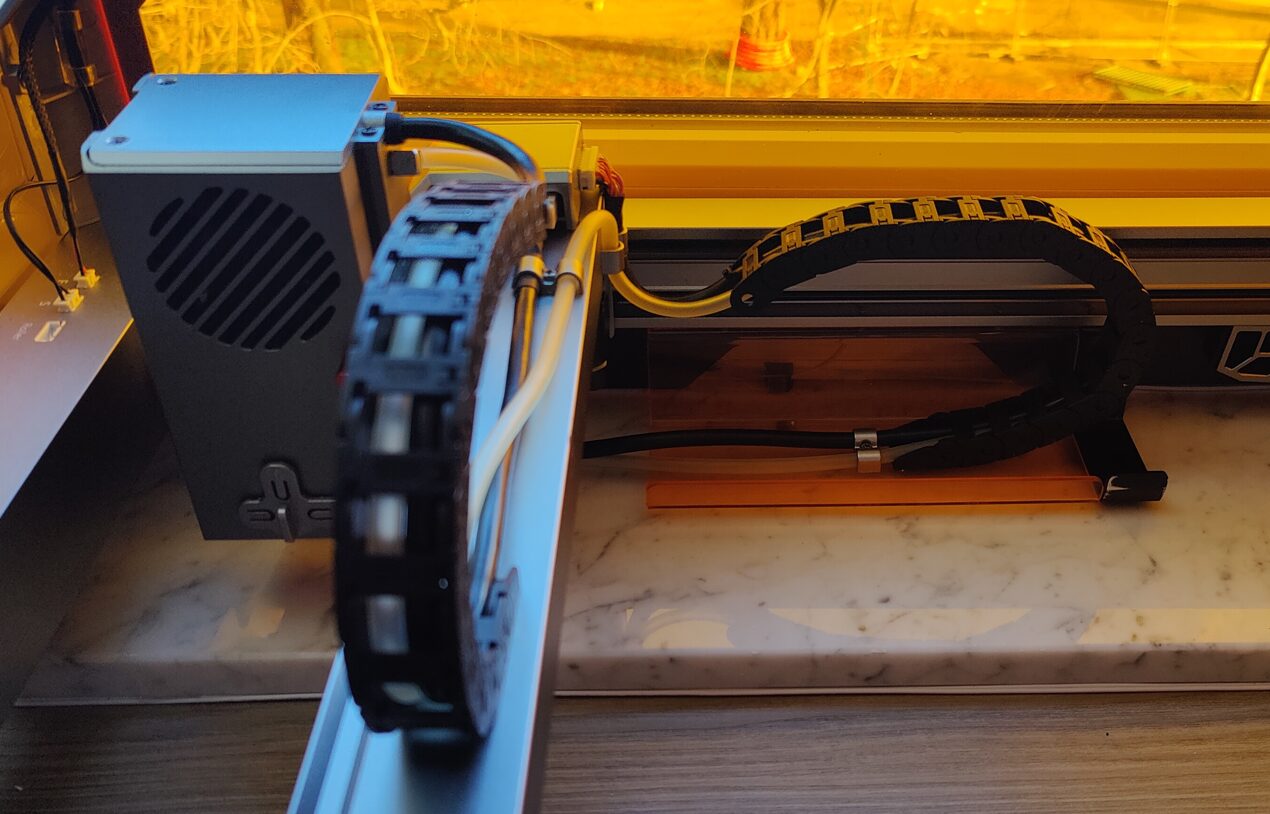

- Place a cable guide on X axis because the cable and air pipe touch the back wall too soon and fold the original air pipe too often.

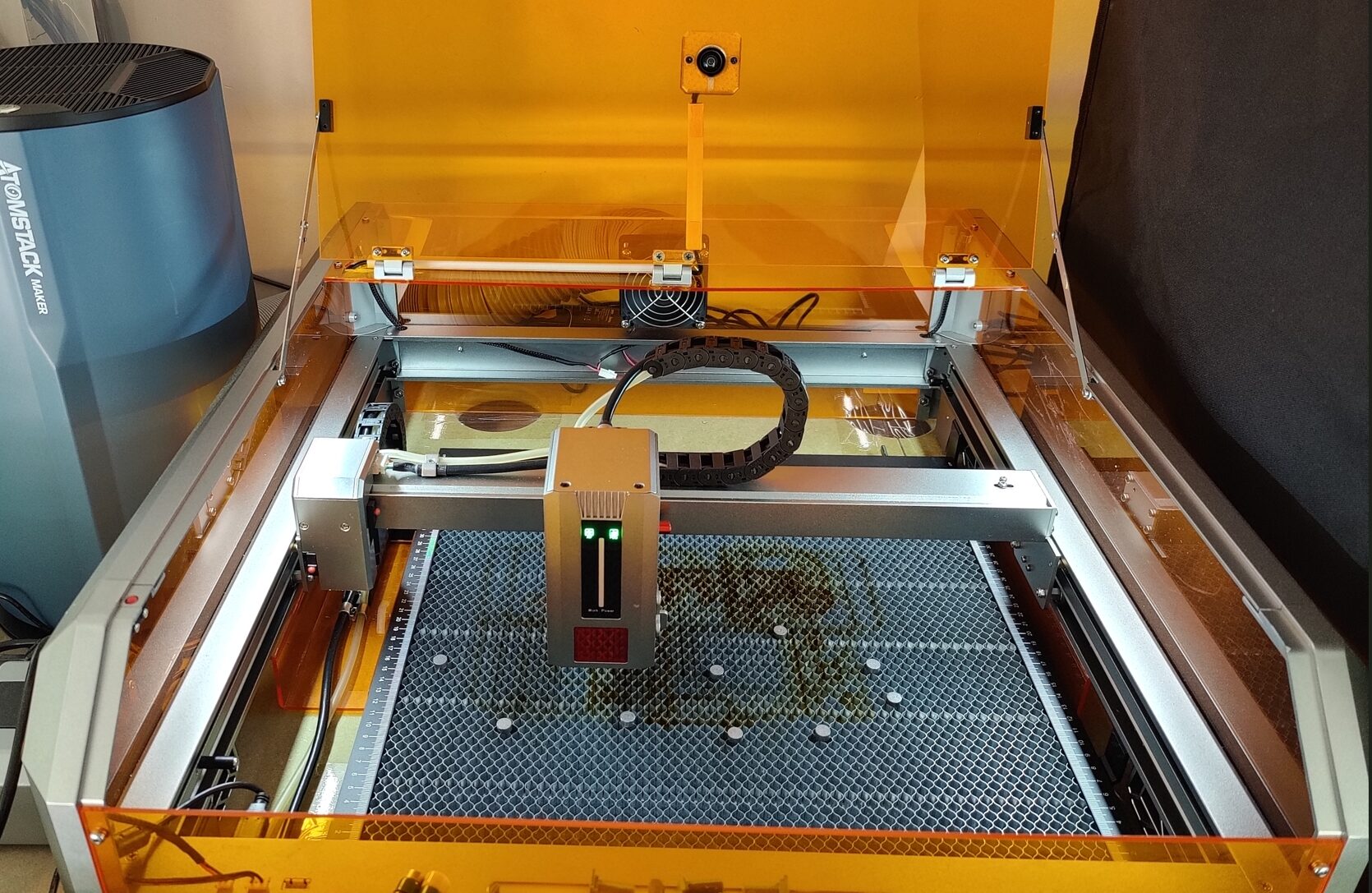

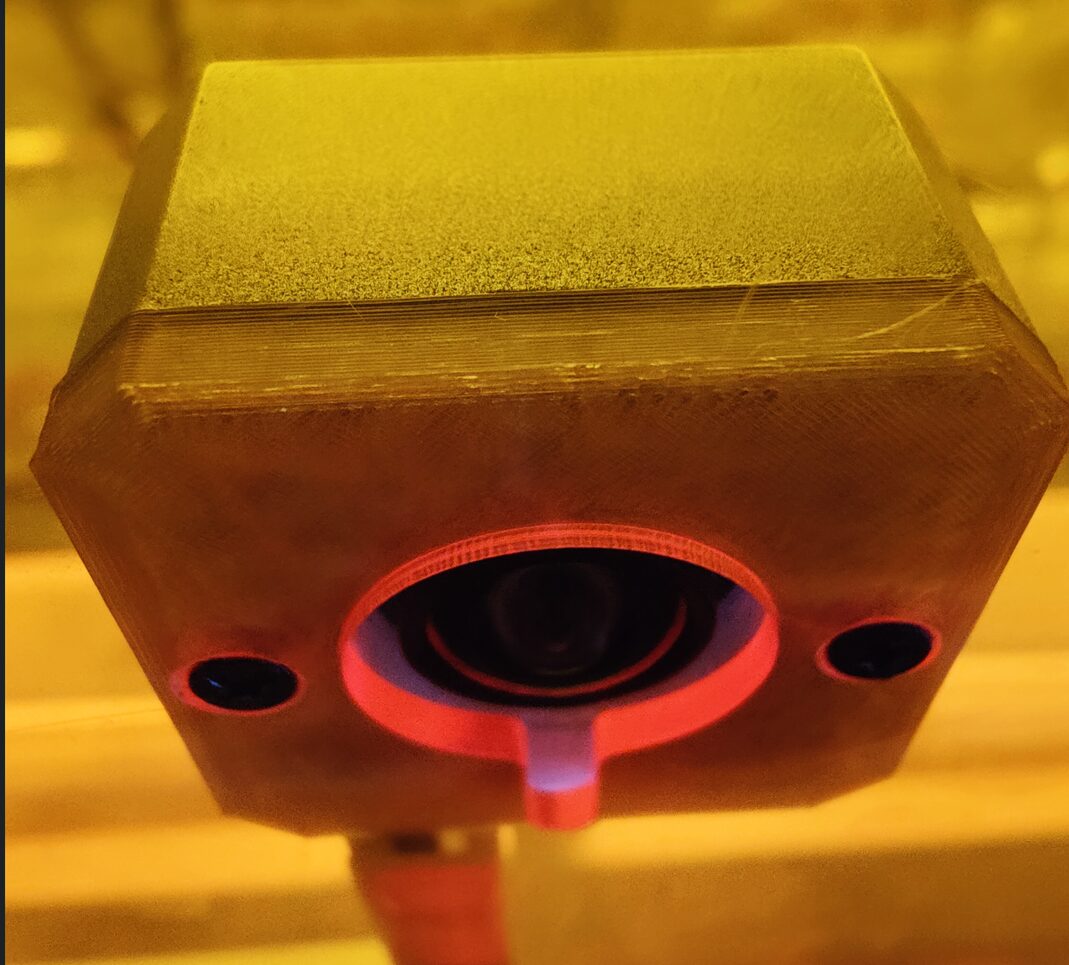

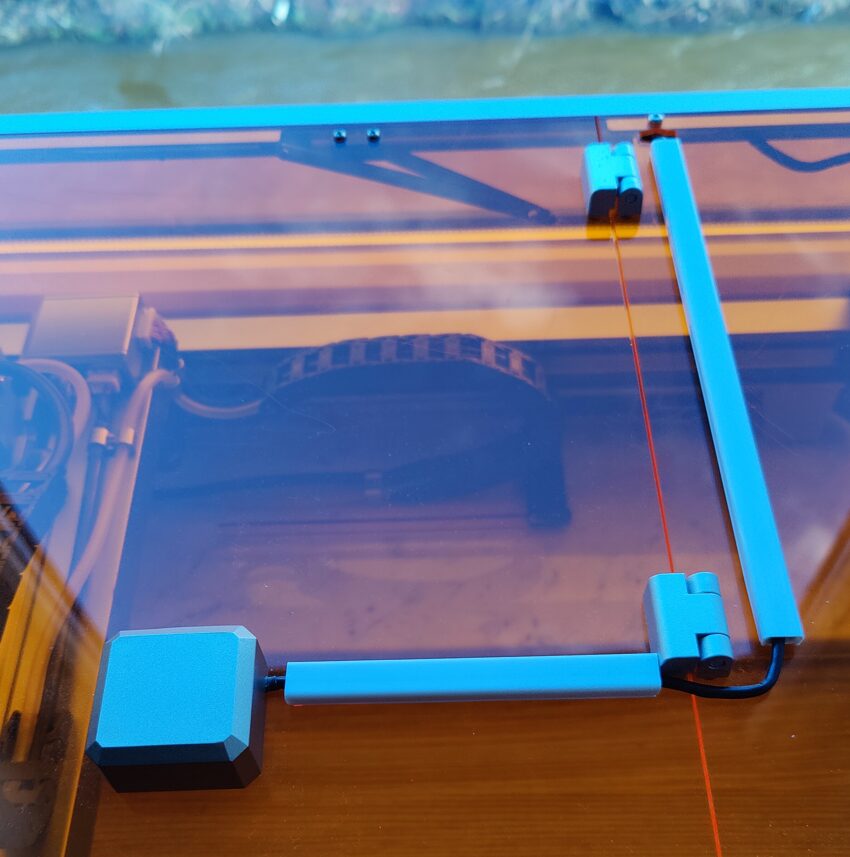

- Externalize and elevate the camera to be out of the path of X axis cable chain

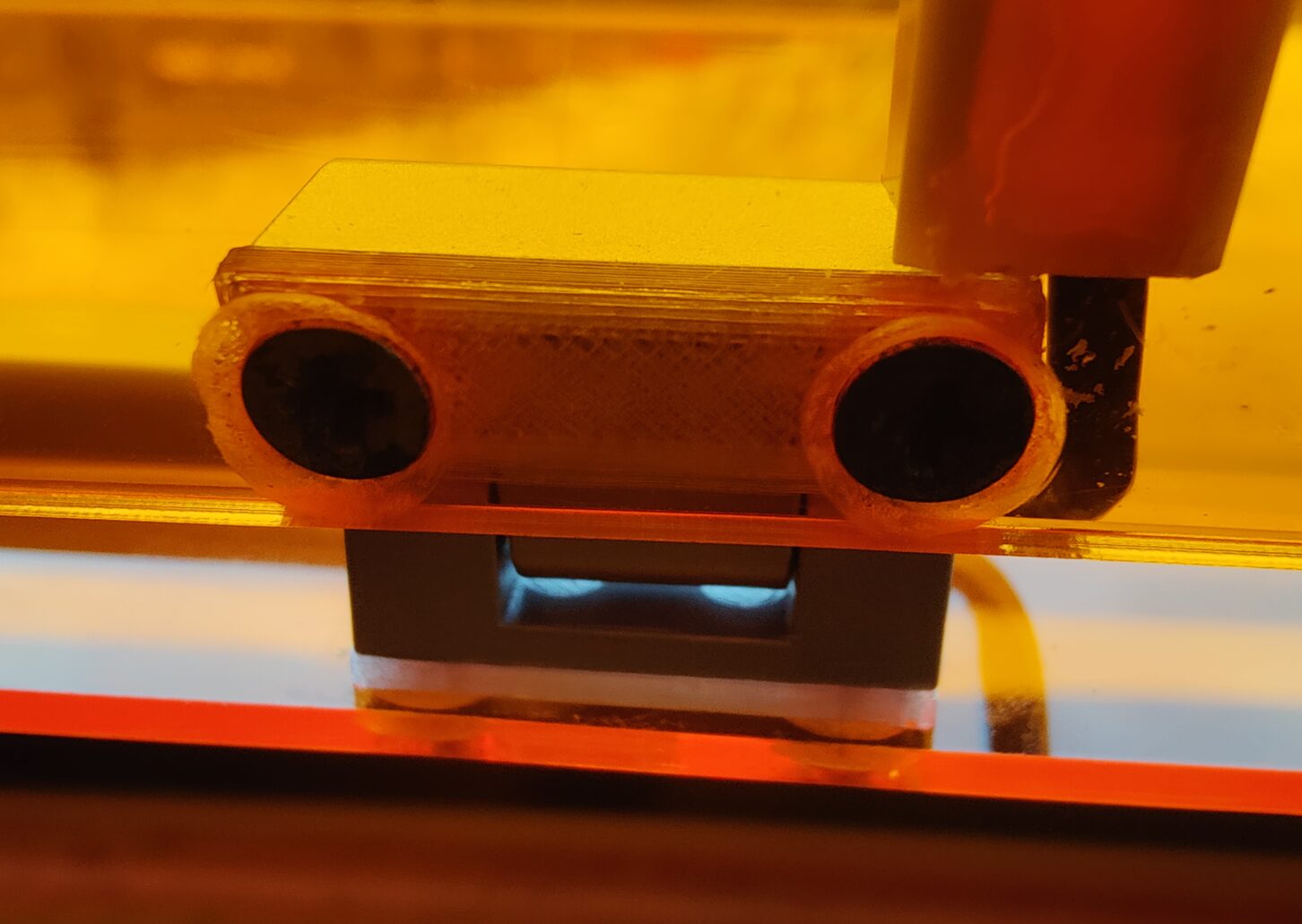

- Make a chamfer on the holes an changing the screws of the camera and the central hinge for the same reason
- Make holes to access the screws to adjust and to lock Y axis belts tension

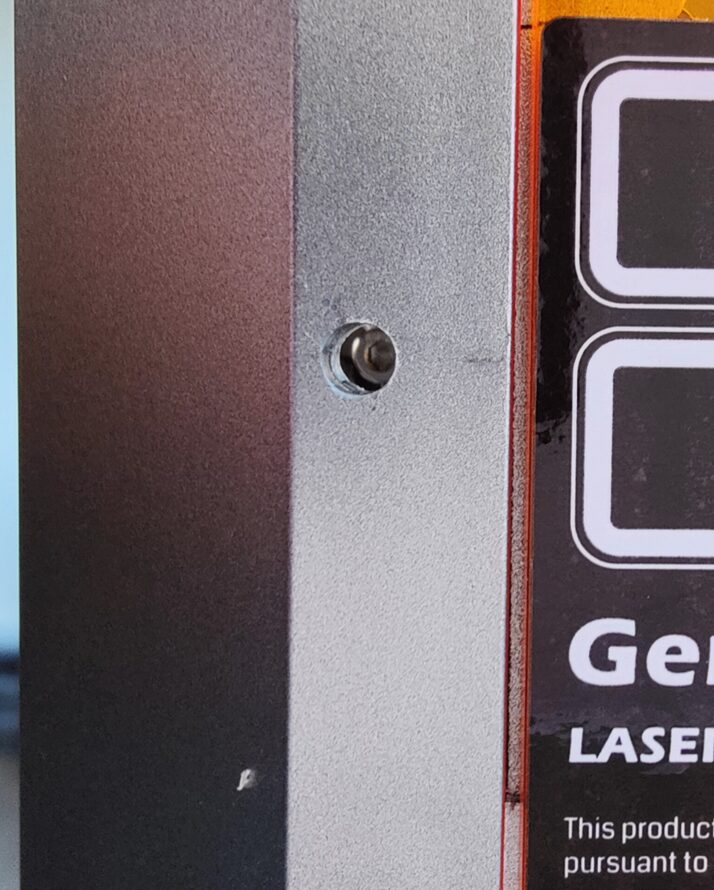

- Make a hole to access the screw to adjust the X axis belt tension

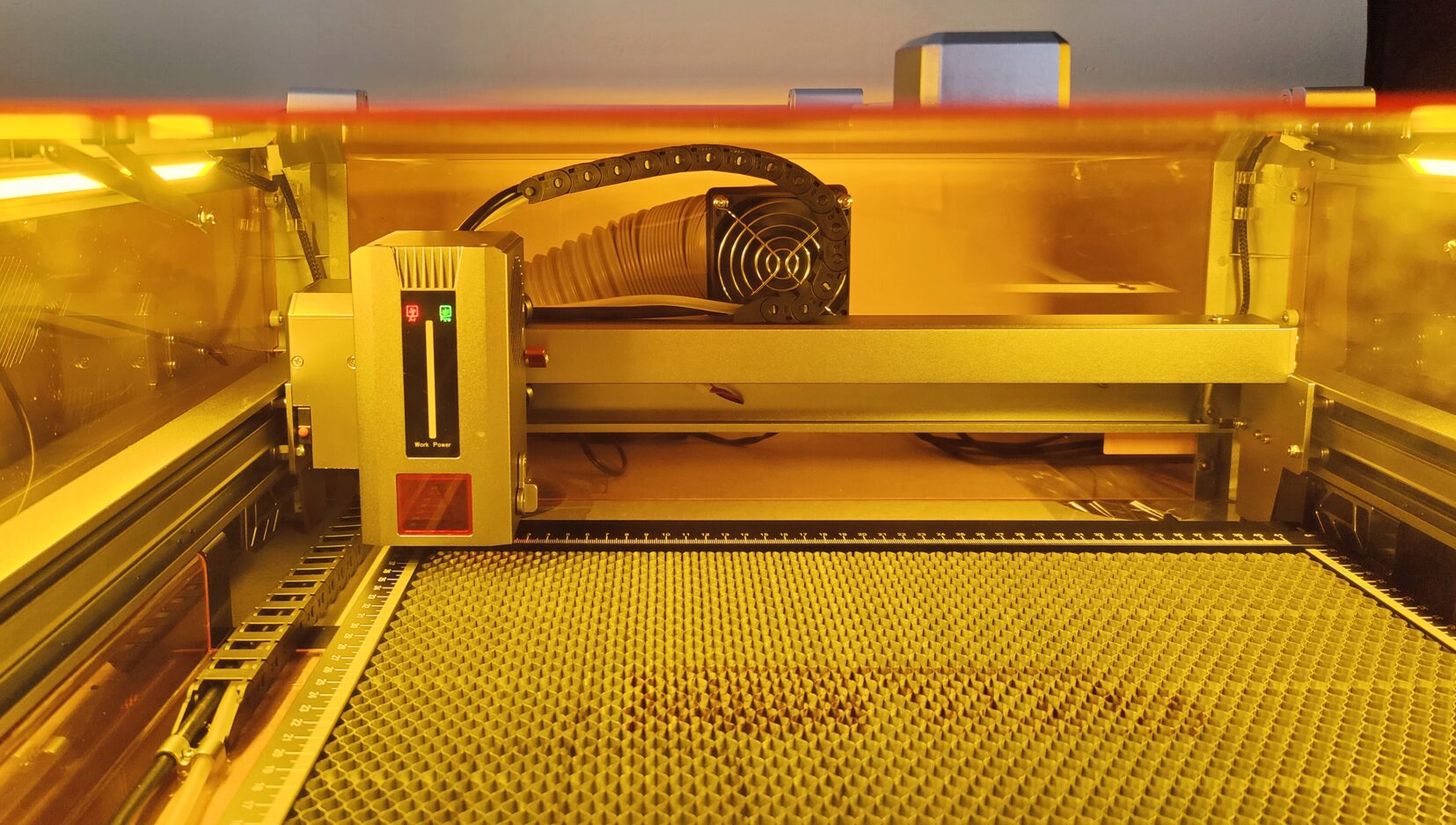

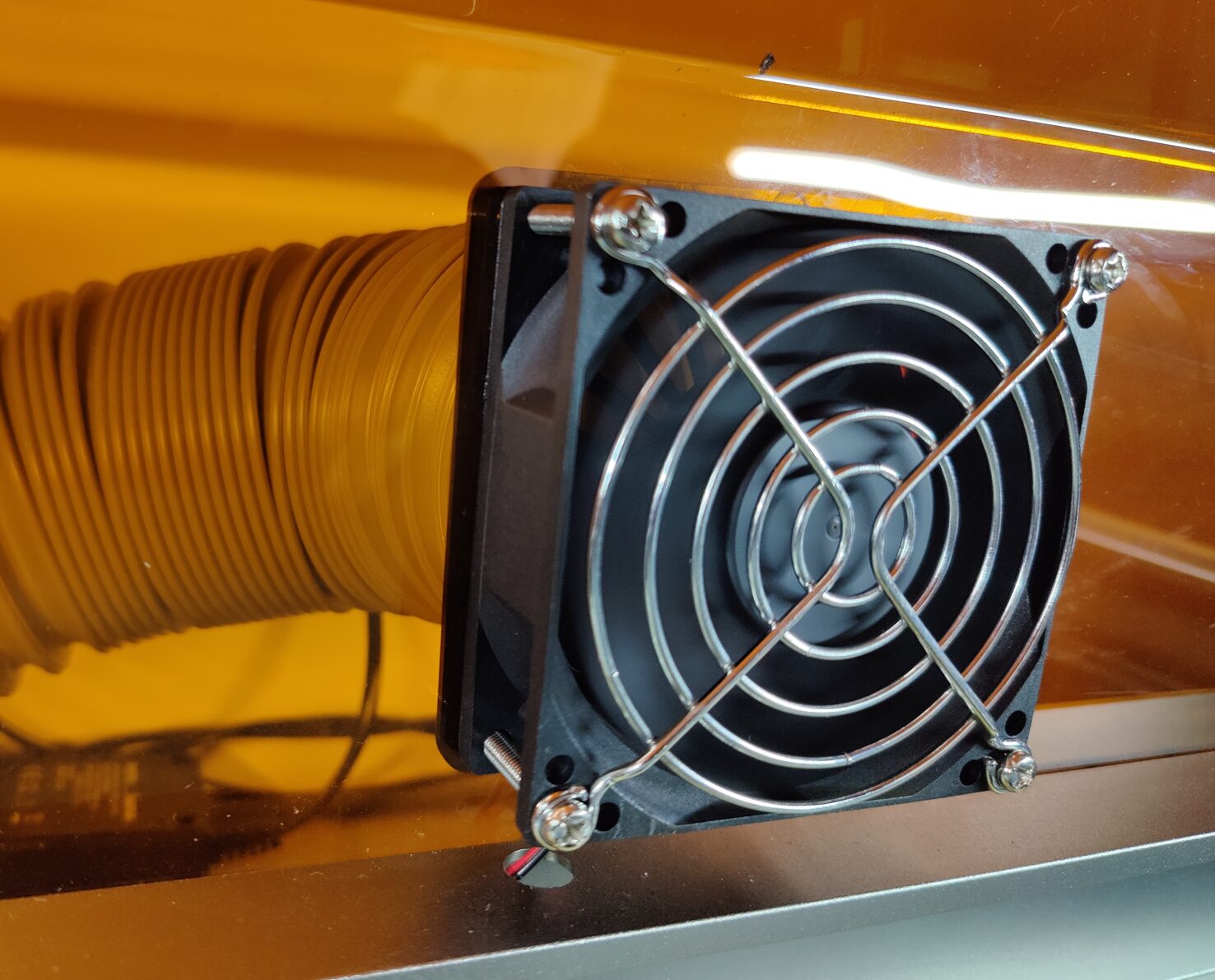

- Move the back fan to inside to gain some place
J’ai acheté ce laser L8 Genmitsu sur Sainsmart
Les caches vis du ventilateur arrière font l’objet de l’article « Protection pour écrous et vis »
Doit être complété
